Docker¶
What is Docker?¶
Platform for developing, shipping and running applications.
Infrastructure as application / code.
First version: 2013.
Company: originally dotCloud (2010), later named Docker.
Established Open Container Initiative.
As a software:
Docker Enterprise Edition.
There is an increasing number of alternative container technologies and providers. Many of them are actually based on software components originally from the Docker stack, and they normally try to address some specific use cases or weak points. As an example, Singularity, that we introduce later in this course, is focused on HPC environments. Another case, Podman, keeps a high functional compatibility with Docker but with a different focus on technology (not keeping a daemon) and permissions.
Docker components¶
Read-only templates.
Containers are run from them.
Images are not run.
Images have several layers.
Images versus containers¶
Image: A set of layers, read-only templates, inert.
An instance of an image is called a container.
When you start an image, you have a running container of this image. You can have many running containers of the same image.
“The image is the recipe, the container is the cake; you can make as many cakes as you like with a given recipe.”
Docker vocabulary¶
docker
Usage: docker [OPTIONS] COMMAND
A self-sufficient runtime for containers
Common Commands:
run Create and run a new container from an image
exec Execute a command in a running container
ps List containers
build Build an image from a Dockerfile
bake Build from a file
pull Download an image from a registry
push Upload an image to a registry
images List images
login Authenticate to a registry
logout Log out from a registry
search Search Docker Hub for images
version Show the Docker version information
info Display system-wide information
Management Commands:
builder Manage builds
buildx* Docker Buildx
compose* Docker Compose
container Manage containers
context Manage contexts
image Manage images
manifest Manage Docker image manifests and manifest lists
model* Docker Model Runner
network Manage networks
plugin Manage plugins
system Manage Docker
volume Manage volumes
...
Get help:
docker run --help
Usage: docker run [OPTIONS] IMAGE [COMMAND] [ARG...]
Create and run a new container from an image
Aliases:
docker container run, docker run
Options:
--add-host list Add a custom host-to-IP mapping (host:ip)
--annotation map Add an annotation to the container (passed through to the OCI runtime) (default map[])
-a, --attach list Attach to STDIN, STDOUT or STDERR
--blkio-weight uint16 Block IO (relative weight), between 10 and 1000, or 0 to disable (default 0)
--blkio-weight-device list Block IO weight (relative device weight) (default [])
--cap-add list Add Linux capabilities
--cap-drop list Drop Linux capabilities
--cgroup-parent string Optional parent cgroup for the container
--cgroupns string Cgroup namespace to use (host|private)
'host': Run the container in the Docker host's cgroup namespace
'private': Run the container in its own private cgroup namespace
'': Use the cgroup namespace as configured by the
default-cgroupns-mode option on the daemon (default)
--cidfile string Write the container ID to the file
--cpu-period int Limit CPU CFS (Completely Fair Scheduler) period
--cpu-quota int Limit CPU CFS (Completely Fair Scheduler) quota
--cpu-rt-period int Limit CPU real-time period in microseconds
--cpu-rt-runtime int Limit CPU real-time runtime in microseconds
-c, --cpu-shares int CPU shares (relative weight)
--cpus decimal Number of CPUs
--cpuset-cpus string CPUs in which to
...
Using existing images¶
Explore Docker hub¶
Images can be stored locally or shared in a registry.
Docker hub is the main public registry for Docker images.

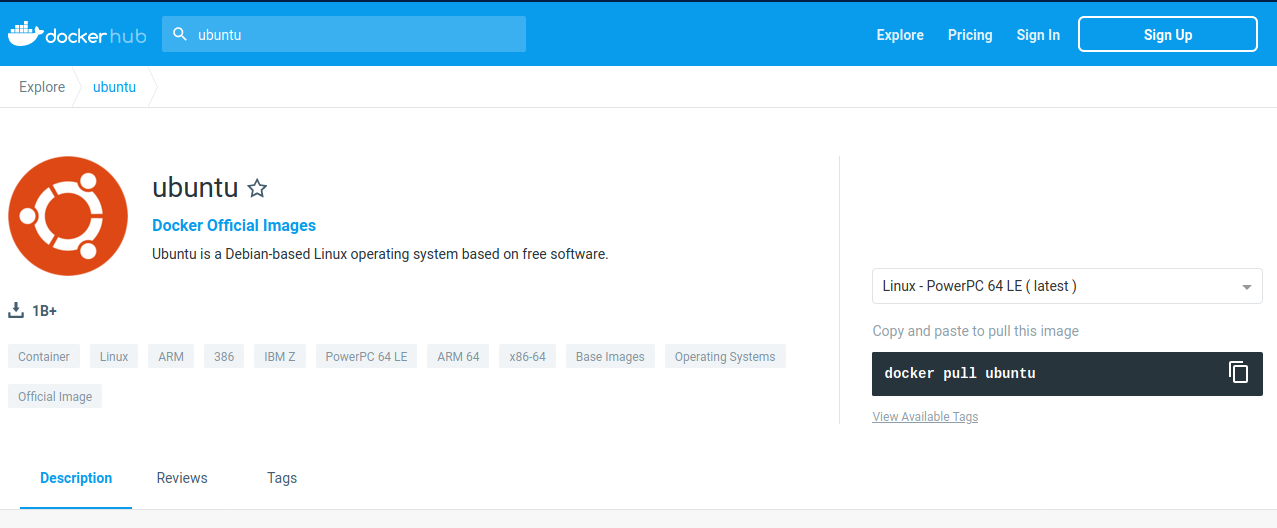

Let’s search the keyword ubuntu:
docker pull: import image¶
get latest image / latest release
docker pull ubuntu
Using default tag: latest
latest: Pulling from library/ubuntu
817807f3c64e: Pull complete
Digest: sha256:186072bba1b2f436cbb91ef2567abca677337cfc786c86e107d25b7072feef0c
Status: Downloaded newer image for ubuntu:latest
docker.io/library/ubuntu:latest

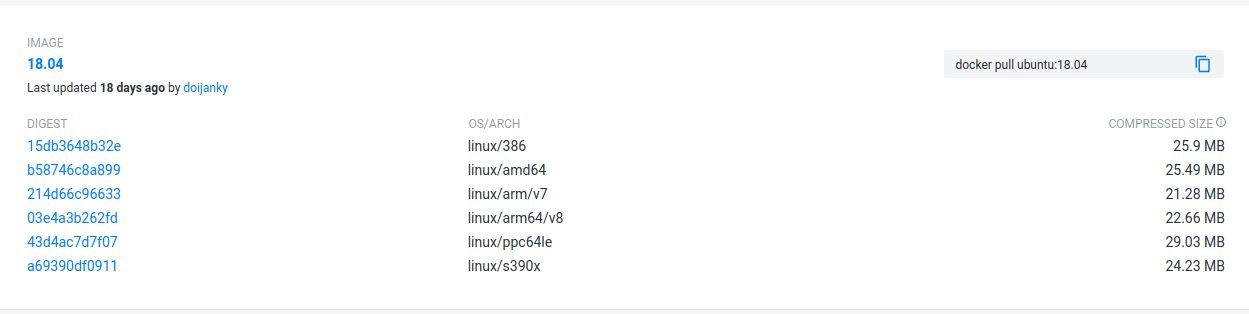

choose the version of Ubuntu you are fetching: check the different tags
docker pull ubuntu:22.04
docker images: list images¶
docker images
IMAGE ID DISK USAGE CONTENT SIZE EXTRA
ubuntu:22.04 2a8380840c2f 77.9MB 0B
ubuntu:latest f794f40ddfff 78.1MB 0B
Recently Docker changed the output format of this subcommand, to retrieve the original most detailed one output, you can do:
docker images --no-trunc
REPOSITORY TAG IMAGE ID CREATED SIZE
ubuntu 22.04 sha256:2a8380840c2fad0be3c1132c6950a8989b560f572b2a17bc7907b5288ee71780 3 weeks ago 77.9MB
ubuntu latest sha256:f794f40ddfff5af8ef1b39ee29eab3b5400ea70b9ebefd286812dbbe0054ad6b 3 weeks ago 78.1MB
Each image has a unique IMAGE ID.
docker run: run image, i.e. start a container¶
Now we want to use what is inside the image.
docker run creates a fresh container (active instance of the image) from a Docker (static) image, and runs it.
The format is:
docker run image:tag command
docker run ubuntu:22.04 /bin/ls
bin
boot
dev
etc
home
lib
lib32
lib64
libx32
media
mnt
opt
proc
root
run
sbin
srv
sys
tmp
usr
var
Now execute ls in your current working directory: is the result the same?
You can execute any program/command that is stored inside the image:
docker run ubuntu:22.04 /bin/whoami
docker run ubuntu:22.04 cat /etc/issue
You can either execute programs in the image from the command line (see above) or execute a container interactively, i.e. “enter” the container.
With --name you can provide a name to the container.
docker run -it ubuntu:22.04 /bin/bash
docker run --name myubuntu -it ubuntu:22.04 /bin/bash
You can run containers in detached mode (kept in the background):
docker run --detach ubuntu:22.04 sleep infinity
docker run --name myubuntu2 --detach ubuntu:22.04 sleep infinity
Note
Instead of sleep infinity, you can use other workarounds, such as tail -f /dev/null or also using docker -it option.
docker ps: check containers status¶
List running containers:
docker ps
List all containers (whether they are running or not):
docker ps -a
We can avoid a bit of mess by using --rm tag when using docker run, so the container is automatically removed, so we don’t accumulate stopped containers.
docker run --rm ubuntu:22.04 /bin/ls
docker exec: execute process in running container¶
docker exec myubuntu2 uname -a
Interactively
docker exec -it myubuntu2 /bin/bash
docker stop, start, restart: actions on container¶
Stop a running container:
docker stop myubuntu2
docker ps -a
Start a stopped container (does NOT create a new one):
docker start myubuntu2
docker ps -a
Restart a running container:
docker restart myubuntu2
docker ps -a
docker rm, docker rmi: clean up!¶
docker rm myubuntu
docker rm -f myubuntu
docker rmi ubuntu:22.04
Volumes¶
Docker containers are fully isolated. It is necessary to mount volumes in order to handle input/output files.
Syntax: --volume / -v host_path:container_path
mkdir data
# We can also copy the FASTQ we used in data
docker run --volume $(pwd)/data:/scratch --name fastqc_container biocontainers/fastqc:v0.11.9_cv7 fastqc /scratch/B7_input_s_chr19.fastq.gz
Volume exercises¶
Copy the 2 FASTQ files from available datasets in GitHub repository and place them in mounted directory
Run
fastqcinteractively (inside container):`fastqc /scratch/*.gz`Run
fastqcnon-interactively (outside the container)
See also
Besides mounted volumes, Docker also supports named volumes and anonymous volumes that are not tied to a specific host path. These volumes are managed by Docker and stored in a dedicated area on the host filesystem (typically under /var/lib/docker/volumes/). Named volumes are useful for persisting data that needs to survive container removal without requiring you to manage the host path directly, while anonymous volumes are created automatically and are typically used for temporary data or caching.
You can create and manage them using commands like docker volume create, docker volume ls, and docker volume rm.
Running Docker as a regular user¶
It is possible to run certain containers with a specific user, appending `run --user`.
A convenient command would be:
docker run --user $(id -u):$(id -g) --volume $(pwd)/data:/scratch --name user_test biocontainers/fastqc:v0.11.9_cv7 touch /scratch/userfile
Ports¶
The same as with volumes, but with ports, to access Internet services.
Syntax: --publish / -p host_port:container_port
We take advantage to present also docker inspect <container> and docker logs <container>
docker run --detach --name webserver nginx
curl localhost:80
docker exec webserver curl localhost:80
docker rm -f webserver
docker run --detach --name webserver --publish 80:80 nginx
curl localhost:80
docker rm -f webserver
docker run --detach --name webserver -p 8080:80 nginx
curl localhost:80
curl localhost:8080
docker exec webserver curl localhost:80
docker exec webserver curl localhost:8080
We inspect and retrieve the logs of that container:
# We get details of the container
docker inspect webserver | less
# We see the logs of the container. Normally only make sense for background services
docker logs webserver
# We can follow live the changes. Similar to what we do with tail -f
docker logs -f webserver
docker rm -f webserver
